Creating Construction Documents - Sheet

View tab > Sheet Composition panel > Sheet

Select Titleblock: A1 Metric

Click OK

Zoom in to the lower-right corner:

Owner: LHUB Properties
Project Name: Modern Hotel
Unnamed: Cover Sheet
Project Number: 2013.01
Drawn by: Jack
Checked by: Mark
A101: A0.0

Create Placeholder Sheet

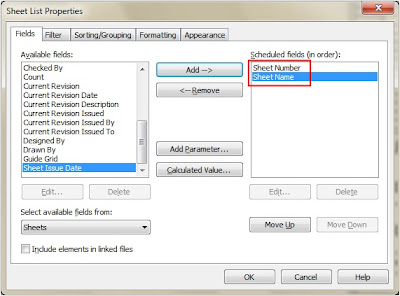

Vuew tab > Create panel > Schedule - Sheet List

Add 2 fields to the right pane

Sheet Number, Sheet Name
Click OK

Sheet List show thw created sheet - A0.0 Cover Sheet

Row panel > New

Add new rows to the Sheet List



View tab > Sheet Composition panel > Sheet

Select all the placeholders, click OK

Project Browse show all the sheets

Setup and Add Views to Sheets

Project Browse - Floor Plan
Duplicate 1st Floor and 2nd Floor
Rename: 1st Floor - Life Safety Plan, 2nd - 8th Floor - Life Safety Plan

Open the new views:
Hide all elements except actual building elements
Turn on Crop Region to tight up against the building

Turn off the Crop RegionOpen the appropriate sheet and drag the Life Safety Plan onto it

Add Guide Grids onto Sheet

Activate A6.5 - Exterior Elevations
View tab > Sheet Composition panel > Guide Grid

Name: A1 Metric 50mm

Select the Guide Grid

Properties palettes - Guide Spacing: 50mm

Drag Pool-East, Pool-North, Pool-South, Pool-West from Elevations (Guilding Elevation)

Properties palettes - Other - Guide Grid: None

Activate A3.1 - Enlarged Plans
Drag 1st Floor Stair 1, 1st Floor Stair 2 from Floor Plan

Activate 1st Floor Plan

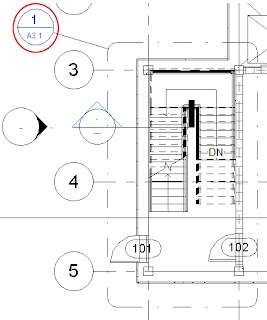

Zoom in to Stair 1, the marker automatically assigned a detail and sheet number

Move the View Title

Activate A6.3 - Exterior Elevations
Select the Pool-South view, drag to align it center with the left view

Click anywhere to deselect the view

Select and drag the view title only, until it align with the left view title
