But, Revit does not automatically display how elements should be built to fit together
You need to create 2D detail drawings to show the how they related to each other
View tab > Create panel > Drafting View
Name: Parapet Detail
Scale: 1:10
Import CAD File
Insert tab > Import panel > Import CADSelect AutoCAD drawing
Color: Black and White
Convert to Revit Elements
Select the import AutoCAD drawing
Import Instance panel > Explode expand - Full Explode
The CAD drawing become individual elements
Select the entire details
Click Check None, check Line (Heavy) only
Line Style panel > Medium Lines
Repeat the same steps:
Lines (Hidden) - Hidden Lines
Lines (Light) - Thin Lines
Modify Text and Leader
Select the entire details, filter the Lines (Text)
Delete them as these objects cannot convert to Revit elements

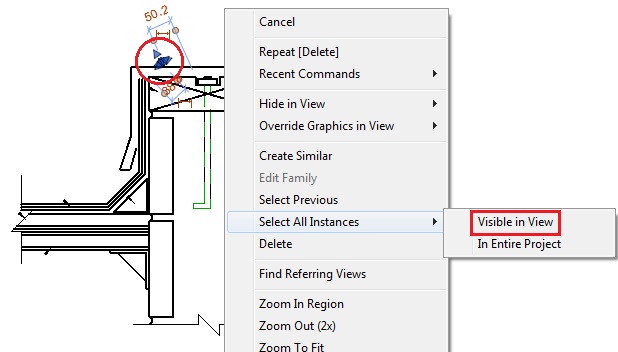

Select one of the arrowhead
Right-click > Select All Instances - Visible in View
Delete them
Select one of the texts
Format panel > Add Right Side Straight Leader
Add leaders to all other texts
Add Filled Region
Hatching from AutoCAD automatically convert to filled region in Revit
But not assigned to Revit-based pattern
Annotate tab > Detail panel > Region - Filled Region
Draw panel > Pick Line
Line Style panel > Invisible Lines
Tab-select or Ctrl-select all the 4 rectangles
Click Finish on the Mode panel
Type Selector - Diagonal Up
Select the area between filled region
Instance Properties - Edit Type - Duplicate
Name: Concrete
Graphics - Fill Pattern - Browse
Pattern Type: Drafting
Pattern: Concrete
Save As View and Import into a Project
Application menu - Save As - Library - View
Click OK to save the view
Close the project and do not save it
Import Drafting View into Project
Open a projectInsert tab > Import panel > Insert from File - Insert View from File
Navigate to the location of the drafting view last saved
Insert Views
Click OK
Save the project
